EVAC - B (NA)
EV CHARGERS FOR THE HOME - PLUG AND PLAY
EVAC-B (NA) HOME EV CHARGERS – PLUG AND PLAY
- EV chargers for home use with power output from 9.6kW to 19.2kW
- Commercial grade EV charging stations
- Energy Star compliant
- Plug and play charging
- Designed for indoor or outdoor installation
EVAC-B (NA) HOME EV CHARGERS
- EV chargers for home use with power output from 9.6kW to 19.2kW
- Commercial grade EV charging stations
- Energy Star compliant
- Plug and play charging
- Designed for indoor or outdoor installation
- 25 feett type 1 (JAE J1772) charging cable
- Wall of floor-mounted versions available
- Designed for easy installation and maintenance
- NEMA 6-50 wiring
- Designed for 208 / 240VAC 60Hz single-phase input
EV CHARGERS FOR THE HOME – PLUG AND PLAY

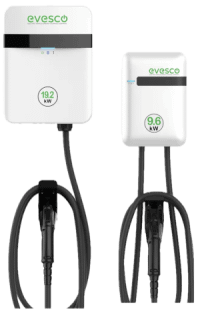

Bring fast, convenient EV charging home with the EVAC-B residential series from EVESCO. Designed for easy, reliable everyday charging at home, these sleek level 2 EV chargers feature a compact, wall-mounted design perfect for garages, driveways, or anywhere you park. The EVAC-i home chargers are available in 40A or 80A models to suit your charging needs. The 40A model provides up to 9.6kW of power, up to 60 km (37 miles) per hour, whereas the 80A version boasts up to 19.2kW, adding up to 120 km (75 miles) of range. Both models have a 25ft type 1 charging cable that easily reaches your parking spot.
Simple to install and operate, the EVAC-B home EV chargers have a plug-and-play design. The chargers automatically stop charging when your electric vehicle is fully charged, providing complete peace of mind. Built to the highest safety and reliability standards with Energy Star certificatior the 208/240V single-phase EV chargers qualify for various EV charger incentives and rebates. Contact us today to learn more and find the perfect charger for your home charging needs.
.01
EVAC 19B - NA
.02
EVAC 9B - NA
EVAC 19B - NA
EVAC-B Series
MODEL SUMMARY

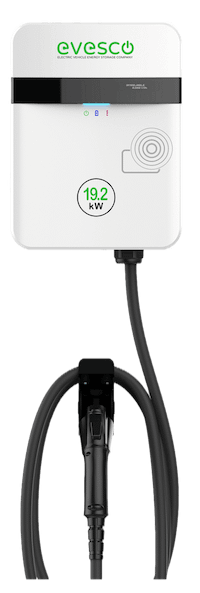

The EVAC-19B (NA) from EVESCO is a 19.2kW 80A home EV charger. Designed for easy, reliable everyday charging at home, these sleek level 2 electric vehicle chargers feature a compact, wall mounted design ideal for a garage or a driveway. Input supply of 208 / 240VAC single-phase with indoor or outdoor installations with its NEMA 3R-rated design. The EVAC-19B (NA) utilizes a 25-foot type 1 (SAE J1772) charging cable that works with all battery electric vehicles and plug-in hybrids in North America. EVESCO's home EV chargers for North America can charge much faster than standard Level 1 chargers. The 80A version can deliver up to 120km (75 miles) of range per hour. Simple to install and operate with a 25-foot type 1 charging cable that works with all battery electric vehicles and plug. in hybrids in North America. Keep your electric vehicle charged with safe, and reliable residential chargers from EVESCO.
EVAC 19B – NA
EVAC-B (NA) Series
- 19.2 kW home EV charger with 80 A output
- Designed for easy installation and maintenance
- 25-foot type 1 (SAE J1772) charging cable
- 208 / 240VAC single-phase supply input
- NEMA 3R rated design ideal for outdoor installation
- Wall-mounted or floor-mounted with a pedestal
- Energy Star compliant
- Hard-wired
EVAC 19B – NA
EVAC-B (NA) Series
- Output Power: 19.2kW
- Output Current: 80A
- Supply Input: 208 / 240VAC (+/- 10%) split phase / 50Hz / 60Hz
- Charging Cable: Type 1 (SAE J1772) – 25-foot cable
- Mounting: Wall-mounted or floor mounted with a pedestal
Dimensions
- Width: 10.6″ / 269mm
- Depth 5.5″ / 140mm
- Height: 14.1″ / 358mm
EVAC 9B - NA
EVAC-B Series
MODEL SUMMARY
The EVAC-9B (NA) from EVESCO is a 9.6kW 40A home EV charger. Designed for easy, reliable everyday charging at home, these sleek level 2 electric vehicle chargers feature a compact, wall mounted design ideal for a garage or a driveway. Input supply of 208 / 240VAC single-phase with indoor or outdoor installations with its NEMA 4-rated design. The EVAC-9B (NA) utilizes a 25-foot type 1 (SAE J1772) charging cable that works with all battery electric vehicles and plug-in hybrids in North America. EVESCO's home EV chargers for North America can charge much faster than standard Level 1 chargers. The 40A version can deliver up to 60km (37 miles) of range per hour. Simple to install and operate with a 25-foot type 1 charging cable that works with all battery electric vehicles and plug-in hybrids in North America. Keep your electric vehicle charged with safe, and reliable residential chargers from EVESCO.
EVAC 9B – NA
AC-B (NA) Series
- 9.6 kW home EV charger with 40 A output
- Designed for easy installation and maintenance
- 25-foot type 1 (SAE J1772) charging cable
- 208 / 240VAC single-phase supply input
- NEMA 4 rated design ideal for outdoor installation
- Wall-mounted or floor-mounted with a pedestal
- Energy Star compliant
- NEMA 6-50 wiring
EVAC 9B – NA
EVAC-B (NA) Series
- Output Power: 9.6kW
- Output Current: 40A (single phase)
- Supply Input: 208 / 240VAC (+/- 10%) single phase / 60Hz
- Charging Cable: Type 1 (SAE J1772) – 25-foot cable
- Mounting: Wall-mounted or floor mounted with a pedestal
Dimensions
- Width: 7.56″ / 192mm
- Depth 3.11″ / 79mm
- Height: 11.14″ / 283mm
