EVAC-S Series
DUAL LEVEL 2 CHARGING STATION WITH MEDIA SCREEN
DUAL LEVEL 2 CHARGING STATION WITH MEDIA
SCREEN

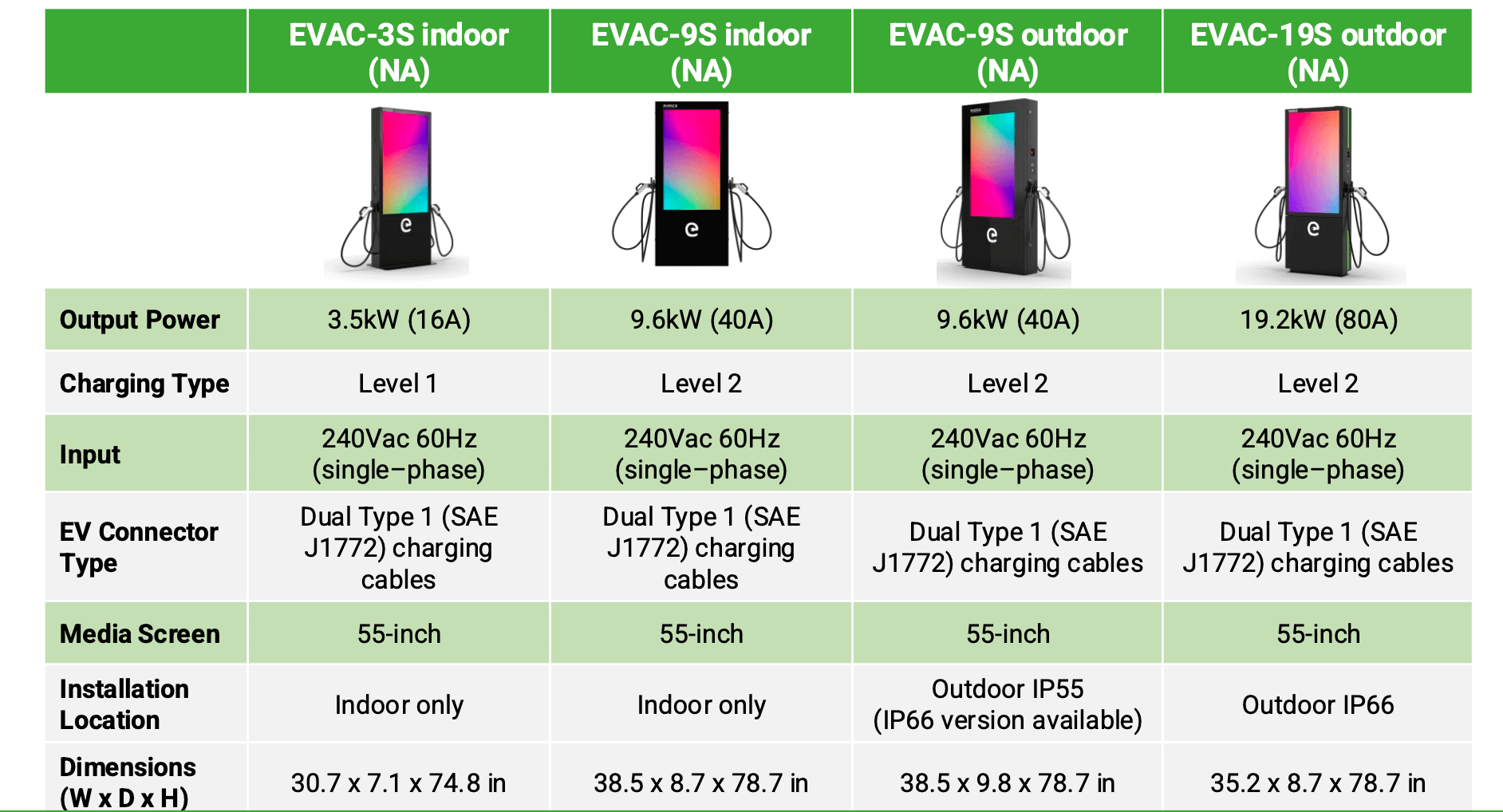

Models – Click Here
DUAL LEVEL 2 CHARGING STATION WITH MEDIA
SCREEN
- Dual EV charging station with integrated 55-inch media screen
- Share customized content applicable to your venue
- Charge two electric cars at the same time from 3.5 kW to 22 kW
- Dual Type 1 (SAE J1772) or Type 2 (Mennekes) charging protocols available
- Offline and online versions with OCPP1.6 available
- Android OS based media player
- Start modes include plug-and-play and RFID
- Available with different power and voltage configurations for global markets
- Ideal for various retail environments, including auto dealerships, supermarkets, malls, big box stores and much more
DUAL LEVEL 2 CHARGING STATION WITH MEDIA
SCREEN
EVESCO’s EVAC-S series of dual Level 2 EV chargers have been designed to attract more electric vehicle drivers to your location and engage them with customized content via a high-quality 55-inch media screen. With dual charging cables, the EVAC-S series can charge two EVs simultaneously with power output from 3.5 kW to 22 kW per charging cable (output power depends on the country of installation). Fully captivate potential customers with static content or videos to increase brand awareness, promote products, relay important messages or generate additional revenue from advertising; you have complete control over what is displayed.
EVESCO’s Level 2 dual-port charging stations provide AC power to the electric vehicles ‘onboard charger’, which uses advanced power control technology to convert that AC power into DC power to charge the vehicle battery. Level 2 charging stations are much faster than Level 1 chargers and come in various charging capacities. Charging for 60 minutes with a 7.6 kW charger delivers approx. 40 km (25 miles) of range, and a 22 kW charger approx. 120 km (75 miles) of range. Charge rates and speeds can differ depending on your electric vehicle type. These media screen charging stations are ideal for Level 2 EV charging in various retail environments, including auto dealerships, supermarkets, malls, big box stores and much
.01
EVAC-19S IP66 (NA)
Description:
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-19S…
Specs:
- Output Power: 19.2kW
- Supply Input: 240 / 208VAC / 60Hz
- Socket Type: Dual Type 1 (SAE J1772)
- Installation: Outdoors (IP66 rated)
.02
EVAC-22S indoor (EU)
Description:
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-22S…
Specs:
- Output Power: 22kW
- Supply Input: 400VAC (+/- 10%) /
- 50Hz
- Socket Type: Dual Type 2 (Mennekes)
- Installation: Indoors
.03
EVAC-22S IP55 (EU)
Description:
- The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-22S…
Specs:
- Output Power: 22kW
- Supply Input: 400VAC (+/-10%) / 50Hz
- Socket Type: Dual Type 2 (Mennekes)
- Installation: Outdoors (IP55 rated)
.04
EVAC-22S IP66 (EU)
Description:
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-22S…
Specs:
- Output Power: 22kW
- Supply Input: 400VAC (+/-10%) / 50Hz
- Socket Type: Dual Type 2 (Mennekes)
- Installation: Outdoors (IP66 rated)
.05
EVAC-3S indoor (EU)
Description:
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-3S…
Specs:
- Output Power: 3.7kW
- Supply Input: 230VAC / 50Hz
- Socket Type: Dual Type 2 (Mennekes)
- Installation: Indoors
- View EVAC-3S indoor (EU)
.06
EVAC-3S indoor (NA)
Description:
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-3S…
Specs:
- Output Power: 3.5kW
- Supply Input: 208 / 240VAC / 60Hz
- Socket Type: Dual Type 1 (SAE J1772)
- Installation: Indoors
.07
EVAC-9S indoor (NA)
Description:
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-9S…
Specs:
- Output Power: 9.6kW
- Supply Input: 208 / 240VAC / 60Hz
- Socket Type: Dual Type 1 (SAE J1772)
- Installation: Indoors
.08
EVAC-9S IP55 (NA)
Description:
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-9S…
Specs:
-
- Output Power: 9.6kW
- Supply Input: 208 / 240VAC / 60Hz
- Socket Type: Dual Type 1 (SAE J1772)
- Installation: Outdoors (IP55 rated)
.09
EVAC-9S IP66 (NA)
Description:
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-9S…
Specs:
- Output Power: 9.6kW
- Supply Input: 240 / 208VAC / 60Hz
- Socket Type: Dual Type 1 (SAE J1772)
- Installation: Outdoors (IP66 rated)
EVAC-19S IP66 (NA) EVAC-S Series
Models Detail
EVAC-19S IP66 (NA)
EVAC-S Series
MODEL SUMMARY
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-19S IP66 (NA) dual EV charger has an integrated 55-inch media screen. You can use the media screen to engage with customers by sharing customized content in static or video formats; this can increase brand awareness, promote products, relay important messages or generate additional revenue through advertising. With dual Type 1 (SAE J1772) 19.2 kW charging cables you can charge two electric vehicles at the same time. The Level 2 dual charger provides AC power to the electric vehicles 'onboard charger, which uses advanced power control technology to convert AC power into DC power to charge the vehicle battery. The EVAC-19S IP66 (NA) can deliver 19.2kW of output power per charging cable at 80A and is designed to work with a single-phase 208 / 240VAC 60Hz input supply. This specific EVAC-S model has an IP66-rated design meaning the media screen is completely maintenance-free with no fan, no vent, and no filter; this makes it ideal for outdoor installations.
- 19.2KW dual Level 2 charging station charger with 55-inch media screen
- Share customized content applicable to your venue or generate advertising
revenue - Dual Type 1 (SAE J1772) charging cables
- Start modes include plug-n-play and RFID card
- Ethernet, 4G and Wi-Fi network connectivity
- IP66 rated design with zero media screen maintenance
- OCPP 1.6 compliant
- 60Hz, 208 / 240VAC supply input
Model Number: EVAC-19S IP66 (NA)
- Output Power: 19.2kW
- Supply Input: 208 / 240VAC /60Hz
- Socket Type:
- Dual Type 1 (SAE J1772) charging cables
- Network Connections:
- Start Modes:
- LAN, 4G, Wi-Fi
- Plug-n-play, RFID card
- Communication: OCPP1.6
- Media Screen: 55 inch (1920 x 1080 resolution)
Dimensions:
- Width: 35.24″ / 895mm
- Depth: 8.66″ / 220mm
- Height: 78.74″ / 2000mm
EVAC-22S INDOOR (EU)
EVAC-S Series
MODEL SUMMARY
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-22S indoor (EU) dual EV charger has an integrated 55-inch media screen. You can use the media screen to engage with customers by sharing customized content in static or video formats; this can increase brand awareness, promote products, relay important messages or generate additional revenue through advertising. With dual Type 2 (Mennekes) 22 kW charging cables you can charge two electric vehicles at the same time. The Level 2 dual charger provides AC power to the electric vehicles 'onboard charger' which uses advanced power control technology to convert AC power into DC power to charge the vehicle battery. The EVAC-22S indoor (EU) can deliver 22kW of output power per charging cable at 40A and is designed to work with a three-phase 400VAC (+/-10%) 50Hz input supply. This specific EVAC-S model is designed for indoor installations only.
- 22kW dual Level 2 charging station charger with 55-inch media screen
- Share customized content applicable to your venue or generate advertising revenue
- Dual Type 2 (Mennekes) charging cables
- Start modes include plug-n-play and RFID card
- Ethernet, 4G and Wi-Fi network connectivity
- OCPP 1.6J compliant
- Designed for easy installation and maintenance
- 50Hz, 400VAC supply input (three-phase)
Model Number: EVAC-22S INDOOR (EU)
- Output Power: 22kW
- Supply Input: 400VAC (+/- 10%) three-phase /50 Hz
- Socket Type: Dual Type 1 (SAE J1772) charging cables
- Start Modes: Plug-n-play, RFID card
- Media Screen: 55 inch (1920 x 1080 resolution)
Dimensions:
- Width: 38.5″ / 977mm
- Depth: 8.7″ / 220mm
- Height: 78.2″ / 2000mm
EVAC-22S IP55 (EU)
EVAC-S Series
MODEL SUMMARY
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-22S IP55 (EU) dual EV charger has an integrated 55-inch media screen. You can use the media screen to engage with customers by sharing customized content in static or video formats; this can increase brand awareness, promote products, relay important messages or generate additional revenue through advertising. With dual Type 2 (Mennekes) 22 kW charging cables you can charge two electric vehicles at the same time. The Level 2 dual charger provides AC power to the electric vehicles 'onboard charger' which uses advanced power control technology to convert AC power into DC power to charge the vehicle battery. The EVAC-22S IP55 (EU) can deliver 22kW of output power per charging cable at 40A and is designed to work with a three-phase 400VAC (+/-10%) 50Hz input supply. This specific EVAC-S model has an IP55 rated design and is ideal for installation in multiple outdoor locations.
- 22kW dual Level 2 charging station charger with 55-inch media screen
- Share customized content applicable to your venue or generate advertising revenue
- Dual Type 2 (Mennekes) charging cables
- Start modes include plug-n-play and RFID card
- Ethernet, 4G and Wi-Fi network connectivity
- IP55 rated design ideal for outdoor installation
- OCPP 1.6J compliant
- 50Hz, 400VAC supply input (three-phase)
Model Number: EVAC-22S IP55 (EU) (EU)
- Output Power: 22kW
- Supply Input: 400VAC (+/- 10%) three-phase /50 Hz
- Socket Type: Dual Type 2 (Mennekes) charging cables
- Network Connection: LAN, $G, Wi-Fi
- Start Modes: Plug-n-play, RFID card
- Communication: OCPP1.6
- Media Screen: 55 inch (1920 x 1080 resolution)
Dimensions:
- Width: 38.5″ / 977mm
- Depth: 9.84″ / 250mm
- Height: 78.2″ / 2000mm
EVAC-22S IP66(EU)
EVAC-S Series
MODEL SUMMARY
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-22S IP66 (EU) dual EV charger has an integrated 55-inch media screen. You can use the media screen to engage with customers by sharing customized content in static or video formats; this can increase brand awareness, promote products, relay important messages or generate additional revenue through advertising. With dual Type 2 (Mennekes) 22 kW charging cables you can charge two electric vehicles at the same time. The Level 2 dual charger provides AC power to the electric vehicles 'onboard charger, which uses advanced power control technology to convert AC power into DC power to charge the vehicle battery. The EVAC-22S 1P66 (EU) can deliver 22kW of output power per charging cable at 40A and is designed to work with a three-phase 400VAC (+/-10%) 50Hz input supply. This specific EVAC-S model has an IP66-rated design meaning the media screen is completely maintenance-free with no fan, no vent, and no filter; this makes it ideal for outdoor installations.
EVAC-22S IP66 (EU)
- 22KW dual Level 2 charging station charger with 55-inch media screen
- Share customized content applicable to your venue or generate advertising revenue
- Dual Type 2 (Mennekes) charging cables
- Start modes include plug-n-play and RFID card
- Ethernet, 4G and Wi-Fi network connectivity
- IP66 rated design with zero media screen maintenance
- OCPP 1.6J compliant
- 50Hz, 400VAC supply input (three-phase)
Model Number: EVAC-22S IP66 (EU)
- Output Power: 22kW
- Supply Input: 400VAC (+/- 10%) three-phase /50 Hz
- Socket Type: Dual Type 2 (Mennekes) charging cables
- Network Connection: LAN, $G, Wi-Fi
- Start Modes: Plug-n-play, RFID card
- Communication: OCPP1.6
- Media Screen: 55 inch (1920 x 1080 resolution)
Dimensions:
- Width: 35.24″ / 895mm
- Depth: 8.66″ / 220mm
- Height: 78.74″ / 2000mm
EVAC- 3S Indoor(EU)
EVAC-S Series
MODEL SUMMARY
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-3S indoor (EU) dual EV charger has an integrated 55-inch media screen. You can use the media screen to engage with customers by sharing customized content in static or video formats; this can increase brand awareness, promote products, relay important messages or generate additional revenue through advertising. With dual Type 2 (Mennekes) 3.7 kW charging cables you can charge two electric vehicles at the same time. The Level 2 dual charger provides AC power to the electric vehicles 'onboard charger' which uses advanced power control technology to convert AC power into DC power to charge the vehicle battery. The EVAC-3S indoor (EU) can deliver 3.7kW of output power per charging cable at 16A and is designed to work with a single-phase 230VAC (+/-10%) 50Hz input supply. This specific EVAC-S model is designed for indoor installations only.
EVAC-3S INDOOR (EU)
- 3.7kW dual Level 2 charging station charger with 55-inch media screen
- Share customized content applicable to your venue or generate advertising revenue
- Dual Type 2 (Mennekes) charging cables
- Offline, plug-and-play charging station
- Content management via Wi-Fi or Ethernet
- Android OS media player
- Designed for easy installation and maintenance
- 50Hz, 230VAC supply input (single-phase)
Model Number: EVAC-3S INDOOR (EU)
- Output Power: 3.7kW
- Supply Input: 230VAC single-phase / 50Hz
- Socket Type: Dual Type 2 Mennekes charging cables
- Start Modes: Plug-n-play
- Media Screen: 55 inch (1920 x 1080 resolution)
Dimensions:
- Width: 30.7″ / 780mm
- Depth: 7.1″ / 180mm
- Height: 73.8″ / 1900mm
EVAC- 3S indoor (NA)
EVAC-S Series
MODEL SUMMARY
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-3S indoor (NA) dual EV charger has an integrated 55-inch media screen. You can use the media screen to engage with customers by sharing customized content in static or video formats; this can increase brand awareness, promote products, relay important messages or generate additional revenue through advertising. With dual Type 1 (SAE J1772) 3.5 kW charging cables you can charge two electric vehicles at the same time. The Level 2 dual charger provides AC power to the electric vehicles 'onboard charger' which uses advanced power control technology to convert AC power into DC power to charge the vehicle battery. The EVAC-3S indoor (NA) can deliver 3.5kW of output power per charging cable at 16A and is designed to work with a single-phase 208 / 240VAC (+/-10%) 60Hz input supply. This specific EVAC-S model is designed for indoor installations only.
3S indoor (NA)
- 3.5kW dual Level 2 charging station charger with 55-inch media screen
- Share customized content applicable to your venue or generate advertising revenue
Dual Type 1 (SAE J1772) charging cables - Offline, plug-and-play charging station
- Content management via Wi-Fi or Ethernet
- Android OS media player
Designed for easy installation and maintenance
60Hz, 208 / 240VAC supply input (single-phase)
Model Number: EVAC-3S INDOOR (NA)
- Output Power: 3.5kW
- Supply Input: 208 / 240VAC /60Hz
- Socket Type: Dual Type 1 (SAE J1772) charging cables
- Start Modes: Plug-n-play, RFID card
- Media Screen: 55 inch (1920 x 1080 resolution)
Dimensions:
- Width: 30.7″ / 780mm
- Depth: 7.1″ / 180mm
- Height: 73.8″ / 1900mm
EVAC- 9S INDOOR (NA)
EVAC-S Series
MODEL SUMMARY
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-9S indoor (NA) dual EV charger has an integrated 55-inch media screen. You can use the media screen to engage with customers by sharing customized content in static or video formats; this can increase brand awareness, promote products, relay important messages or generate additional revenue through advertising. With dual Type 1 (SAE J1772) 9.6 KW charging cables you can charge two electric vehicles at the same time. The Level 2 dual charger provides AC power to the electric vehicles 'onboard charger' which uses advanced power control technology to convert AC power into DC power to charge the vehicle battery. The EVAC-9S indoor (NA) can deliver 9.6kW of output power per charging cable at 40A and is designed to work with a single-phase 208 / 240VAC (+/-10%) 60Hz input supply. This specific EVAC-S model is designed for indoor installations only.
EVAC-9S indoor (NA)
- 6kW dual Level 2 charging station charger with 55-inch media screen
- Share customized content applicable to your venue or generate advertising revenue
- Dual Type 1 (SAE J1772) charging cables
- Ethernet, 4G and Wi-Fi network connectivity
- Start modes include plug-n-play and RFID card
- Android OS media player
- Designed for easy installation and maintenance
- 60Hz, 208 / 240VAC supply input (single-phase)
Model Number: EVAC-9S INDOOR (NA)
- Output Power: 9.6kW
- Supply Input: 208 / 240VAC single phase /60Hz
- Socket Type: Dual Type 1 (SAE J1772) charging cables
- Start Modes: Plug-n-play, RFID card
- Media Screen: 55 inch (1920 x 1080 resolution)
Dimensions:
- Width: 38.5″ / 977mm
- Depth: 8.7″ / 220mm
- Height: 78.2″ / 2000mm
EVAC- 9S IP55 (NA)
EVAC-S Series
MODEL SUMMARY
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-9S IP55 (NA) dual EV charger has an integrated 55-inch media screen. You can use the media screen to engage with customers by sharing customized content in static or video formats; this can increase brand awareness, promote products, relay important messages or generate additional revenue through advertising. With dual Type 1 (SAE J1772) 9.6 kW charging cables you can charge two electric vehicles at the same time. The Level 2 dual charger provides AC power to the electric vehicles 'onboard charger' which uses advanced power control technology to convert AC power into DC power to charge the vehicle battery. The EVAC-9S IP55 (NA) can deliver 9.6kW of output power per charging cable at 40A and is designed to work with a single-phase 208 / 240VAC (+/-10%) 60Hz input supply. This specific EVAC-S model has an IP55 rated design and is ideal for installation in multiple outdoor locations.
EVAC-9S IP55 (NA)
- 6kW dual Level 2 charging station charger with 55-inch media screen
- Share customized content applicable to your venue or generate advertising revenue
- Dual Type 1 (SAE J1772) charging cables
- Start modes include plug-n-play and RFID card
- Ethernet, 4G and Wi-Fi network connectivity
- IP55 rated design ideal for outdoor installation
- OCPP 1.6J compliant
- 60Hz, 208 / 240VAC supply input (single-phase)
Model Number: EVAC-9S IP55 (NA)
- Output Power: 9.6kW
- Supply Input: 208 / 240VAC single phase /60Hz
- Socket Type: Dual Type 1 (SAE J1772) charging cables
- Network Connection: LAN, 4G, Wi-Fi
- Start Modes: Plug-n-play, RFID card
- Media Screen: 55 inch (1920 x 1080 resolution)
Dimensions:
- Width: 38.5″ / 977mm
- Depth: 9.84″ / 250mm
- Height: 78.2″ / 2000mm
EVAC- 9S IP66 (NA)
EVAC-S Series
MODEL SUMMARY
The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-9S IP66 (NA) dual EV charger has an integrated 55-inch media screen. You can use the media screen to engage with customers by sharing customized content in static or video formats; this can increase brand awareness, promote products, relay important messages or generate additional revenue through advertising. With dual Type 1 (SAE J1772) 9.6 kW charging cables you can charge two electric vehicles at the same time. The Level 2 dual charger provides AC power to the electric vehicles 'onboard charger, which uses advanced power control technology to convert AC power into DC power to charge the vehicle battery. The EVAC-9S IP66 (NA) can deliver 9.6kW of output power per charging cable at 40A and is designed to work with a single-phase 208 / 240VAC 60Hz input supply. This specific EVAC-S model has an IP66-rated design meaning the media screen is completely maintenance-free with no fan, no vent, and no filter; this makes it ideal for outdoor installations.
EVAC-9S IP66 (NA)
- 6kW dual Level 2 charging station charger with 55-inch media screen
- Share customized content applicable to your venue or generate advertising revenue
- Dual Type 1 (SAE J1772) charging cables
- Start modes include plug-n-play and RFID card
- Ethernet, 4G and Wi-Fi network connectivity
- IP66 rated design with zero media screen maintenance
- OCPP 1.6J compliant
- 60Hz, 208 / 240VAC supply input (single-phase)
Model Number: EVAC-9S IP66 (NA)
- Output Power: 9.6kW
- Supply Input: 208 / 240VAC single phase /60Hz
- Socket Type: Dual Type 1 (SAE J1772) charging cables
- Network Connection: LAN, 4G, Wi-Fi
- Start Modes: Plug-n-play, RFID card
- Communication: OCPP1.6
- Media Screen: 55 inch (1920 x 1080 resolution)
Dimensions:
- Width: 35.24″ / 895mm
- Depth: 8.66″ / 220mm
- Height: 78.74″ / 2000mm
You need a price? A quote? Or have a questions? Click Here
