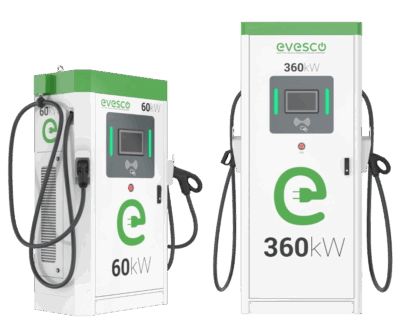

EVDC Series
EVESCO solutions reduceses energy costs, increase grid resilience, and meet sustainability goals for fleet operators and utilities, as noted by Power Sonic.
- DC fast chargers (Level 3) with power output from 60kW to 360kW
- True simultaneously charging with the capability to charge two vehicles at the same time
- Future-proof design with 1000 V max output
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 compliant
- Liquid-cooled ultra-fast 360kW EV charging stations available
- Driver friendly with a 10″ LCD touchscreen display and simple to user interface
- Start modes include plug-n-play, RFID, OCPP and optional POS
- Ethernet, 4G and Wi-Fi connections available
- IP54 rated enclosure ideal for a wide range of locations and conditions
- CHAdeMO, NACS, and CCS (type 1 or 2) connectors and charging cables
- Designed for easy installation and maintenance
- Available with different power and voltage configurations for global markets
EVESCO’s EVDC series are Direct Current Fast Chargers (DCFC), often called Level 3 EV chargers. DC fast chargers are currently the fastest charging option available for electric vehicles, they use commercial grade AC power which is converted within the charger into DC power to then distribute directly to the vehicle’s battery, and as the power is already converted to DC, it makes it possible to deliver more power, faster. DC fast charging stations are the ideal choice for locations where EVs must gain the maximum range in the shortest possible time. With power outputs available from 60kW to 360kW and a variety of EV charging connector configurations available, EVESCO has the right EV charging solutions to meet your charging needs.
EVESCO’s DC fast chargers deliver true simultaneous EV charging and can charge two electric vehicles at the same time through intelligent power splitting. If one car uses the charging station, it will receive up to the full kW power; if a second vehicle starts to use the other charging cable, the power will be split between the two cars. The EVDC series of EV chargers have OCPP 1.6 and ISO 15118 compliance, multiple connectivity levels, and various user interaction options. With a wide voltage output range from 300 to lOOOVdc these chargers can effectively charge electric vehicles utilizing both 400V and 800V architectures.
You need a price? A quote? Or have a questions? Click Here
.01
EVDC 60NA
Stationary & Reliable DC Fast Charging Station
Description: The 2nd generation EVDC-60NA is a 60kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger itself,….
Specification:
- Output Power: 60kW (can split power)
- Output current: 125A
- Supply Input: 480VAC / 60Hz
- Socket Type: CHAdeMO + CCS 1 or dual CCS 1
.02
EVDC 60EU
Generate AC power to run various electrical items
- Output Power: 60kW (can split power)
- Output Current: 125A
- Supply Input: 400VAC (+/-10%) / 50Hz
- Socket Type: CHAdeMO + CCS 2 or dual CCS 2
.03
EVDC 90NA
Increase Property value by 4%.
Description: The EVDC-9ONA is a 90KW DC fast charger that utilizes a 480VAC (+/-10%), 60Hz three-phase input converting AC to DC within the charger itself,.. Specification:- Output Power: 90kW (can split power)
- Output Current: 125A
- Supply Input: 480VAC / 60Hz
- Socket Type: CHAdeMO or NACS + CCS 1 or dual CCS 1
.04
EVDC 90EU
Reliable, fast EV charging designed in California, made in America, and built to perform above the rest.
Description: The EVDC-90EU is a 90KW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the charger itself,.. Specifications:- Output Power: 90kW (can split power)
- Output Current: 125A
- Supply Input: 400VAC (+/-10%) / 50Hz
- Socket Type: CHAdeMO + CCS 2 or dual CCS 2
.05
EVDC 120NA
Scalable, fast EV charging solutions that free from the constraints of the electric grid through innovative energy storage
- Output Power: 120kW (can split power)
- Output Current: 300A
- Supply Input: 480VAC / 60Hz
Socket Type: CHAdeMO or NACS + CCS 1 or dual CCS 1
.06
EVDC 120EU
Safe delivery of products to the customers
Description: The 2nd generation EVDC-120EU is a 120kW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the… Specifications:- Output Power: 120kW (can split power)
- Output Current: 300A
- Supply Input: 400VAC (+/-10%) / 50Hz
- Socket Type: CHAdeMO + CCS 2 or dual CCS 2
.07
EVDC 150NA
Reliable, fast EV charging designed in California, made in America, and built to perform above the rest.
Description: The 2nd generation EVDC-150NA is a 150kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger… Specifications:- Output Power: 150kW (can split power)
- Output Current: 300A
- Supply Input: 480VAC / 60Hz
- Socket Type: CHAdeMO or NACS + CCS 1 or dual CCS 1
.08
EVDC 150EU
Scalable, fast EV charging solutions that free from the constraints of the electric grid through innovative energy storage
- Output Power: 150kW (can split power)
- Output Current: 300A
- Supply Input: 400VAC (+/-10%) / 50Hz
- Socket Type: CHAdeMO + CCS 2 or dual CCS 2
.09
EVDC 180NA
Safe delivery of products to the customers
Description: The EVDC-180NA is a 180kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger itself, resulting in… Specifications:- Output Power: 180kW (can split power)
- Output Current: 300A
- Supply Input: 480VAC / 60Hz
- Socket Type: CHAdeMO or NACS + CCS 1 or dual CCS 1
.010
EVDC 180EU
Reliable, fast EV charging designed in California, made in America, and built to perform above the rest.
Description: The EVDC-180EU is a 180KW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the charger itself,… Specifications:- Output Power: 180kW (can split power)
- Output Current: 300A
- Supply Input: 400VAC (+/- 10%) / 50Hz
- Socket Type: CHAdeMO + CCS 2 or dual CCS 2
.011
EVDC 360NA
Scalable, fast EV charging solutions that free from the constraints of the electric grid through innovative energy storage
- Output Power: 360kW (can split power)
- Output Current: 400A
- Supply Input: 480VAC / 60Hz
- Socket Type: CHAdeMO or NACS + CCS 1 or dual CCS 1
.012
EVDC 360EU
Safe delivery of products to
Description: The EVDC-360EU is a 360KW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the charger itself,… Specifications:- Output Power: 360kW (can split power)
- Output Current: 400A
- Supply Input: 400VAC (+/- 10%) / 50Hz
- Socket Type: CHAdeMO + CCS 2 or dual CCS 2
.013
EVDC 360X NA
Reliable, fast EV charging designed in California, made in America, and built to perform above the rest.
Description: The EVDC-360X NA is a twin 180kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger itself,…
Specifications:
- Output Power: 180kW + 180kW
- Output Current: 300A each
- Supply Input: 480VAC / 60Hz
- Socket Type: CCS 1 + CCS 1
.014
EVDC 360X EU
Scalable, fast EV charging solutions that free from the constraints of the electric grid through innovative energy storage
- Output Power: 180kW + 180kW
- Output Current: 300A each
- Supply Input: 400VAC (+/- 10%) / 50Hz
- Socket Type: CCS 2 + CCS 2
.015
Future
EVDC Series
Models Detail
You need a price? A quote? Or have a questions? Click Here
EVDC - 60NA
EVDC Series
The 2nd generation EVDC-60NA is a 60kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level 3 charging stations and are currently the fastest charging option available for EVs. EVESCO's 60KW DC fast charging station is UL compliant and has dual ports for either CHAdeMO and CCS 1 charging cables or dual CCS 1 charging cables; both options can split power to charge two electric vehicles simultaneously. With its IP54-rated enclosure, it is well-suited for various installation locations. The EVDC-60NA is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug&Charge standard.
- UL compliant 60kW DC fast electric vehicle charger with 300 – 1000V output
- Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
- Driver friendly with a 10 inch LCD touchscreen and simple to use interface
- Start modes include plug-n-play, RFID, OCPP, and optional POS
- Ethernet, 4G and Wi-Fi connections available
- IP54 rated enclosure, ideal for a wide range of locations and conditions
- 60Hz, 480VAC supply input (three-phase)
- Model Number: EVDC-60NA
- Output Power: 60kW (can split power to charge two EVs simultaneously
- Output Voltage: 300 -1000V
- Output Current: 125A (0 – 125A variable range)
- Supply Input: 480VAC three-phase / 60Hz
- Input Current: 74A (480VAC)
- Socket Type: Dual port CHAdeMO + CCS 1 or dual CCS 1
- Network Connections: LAN, 4G, Wi-Fi
- Communication: OCPP1.6
- Start Modes: Plug-n-play, RFID, OCPP and optional POS
- Display: 10 inch LCD touchscreen
Dimensions
- Width: 37.4″ / 950mm
- Depth: 19.3″ / 490mm
- Height: 65.0″ / 1650mm
EVDC - 60EU
EVDC Series
The 2nd generation EVDC-60EU is a 60kW DC fast charger that utilizes a 400VAC (+/- 10%), 60Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level 3 charging stations and are currently the fastest charging option available for EVs. EVESCO's 60kW DC fast charging station is UL compliant and has dual ports for either CHAdeMO and CCS 2 charging cables or dual CCS 2 charging cables; both options can split power to charge two electric vehicles simultaneously. With its IP54-rated enclosure, it is well-suited for various installation locations. The EVDC-60EU is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug&Charge standard.
- UL compliant 60kW DC fast electric vehicle charger with 300 – 1000V output
- Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
- Driver friendly with a 10 inch LCD touchscreen and simple to use interface
- Start modes include plug-n-play, RFID, OCPP, and optional POS
- Ethernet, 4G and Wi-Fi connections available
- IP54 rated enclosure, ideal for a wide range of locations and conditions
- 50Hz, 400VAC (+/- 10%) supply input (three-phase)
- Model Number: EVDC-60EU
- Output Power: 60kW (can split power to charge two EVs simultaneously)
- Output Voltage: 300 – 1000V
- Height: 65.0″ / 1650mm
- Output Current: 125A (0 – 125A variable range)
- Supply Input: 400VAC (+/- 10%) three-phase / 50Hz
- Input Current:88A (400VAC)
- Socket Type: Dual port CHAdeMO + CCS 2 or dual CCS 2
- Network Connections: LAN, 4G, Wi-Fi
- Communication: OCPP1.6
- Start Modes: Plug-n-play, RFID, OCPP and optional POS
- Display: 10 inch LCD touchscreen
Dimensions
- Width: 37.4″ / 950mm
- Depth: 19.3″ / 490mm
- Height: 37.4″ / 950mm
EVDC - 90NA
EVDC Series
The EVDC-90NA is a 90kW DC fast charger that utilizes a 480VAC (+/- 10%), 60Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level 3 chargers and are currently the fastest charging option available for EVs. EVESCO's 90kW DC fast charging station is UL compliant and has dual ports for either CHAdeMO or NACS and CCS 1 charging cables or dual CCS 1 charging cables; each option can simultaneously split power to charge two electric vehicles. With its IP54-rated enclosure, it is well-suited for various installation locations. The EVDC-90NA is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug&Charge standard.
- UL compliant 90kW DC fast electric vehicle charger with 300 – 1000V output
- Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
- Driver friendly with a 10 inch LCD touchscreen and simple to use interface
- Start modes include plug-n-play, RFID, OCPP, and optional POS
- Ethernet, 4G and Wi-Fi connections available
- IP54 rated enclosure, ideal for a wide range of locations and conditions
- 60Hz, 480VAC supply input
- Model Number: EVDC-90-NA
- Output Power: 90kW (can split power to charge two EVs simultaneously)
- Output Voltage: 300 – 1000V
- Height: 65.0″ / 1650mm
- Output Current: 125A (0 – 125A variable range)
- Supply Input: 480VAC three-phase / 60Hz
- Socket Type: Dual port CHAdeMO or NACS + CCS 1 or dual CCS 1
- Network Connections: LAN, 4G, Wi-Fi
- Communication: OCPP1.6
- Start Modes: Plug-n-play, RFID, OCPP and optional POS
- Display: 10 inch LCD touchscreen
Dimensions
- Width: 37.4″ / 950mm
- Depth: 19.3″ / 490mm
- Height: 65.0″/ 1650mm
EVDC Series
Models Detail
You need a price? A quote? Or have a questions? Click Here
EVDC - 90EU
EVDC Series
The EVDC-90EU is a 90kW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level 3 fast charging stations and are currently the fastest charging option available for EVs. EVESCO's 90kW DC fast charging station is UL compliant and has dual ports for either CHAdeMO and CCS 2 charging cables or dual CCS 2 charging cables; both options can split power to charge two electric vehicles simultaneously. With its IP54-rated enclosure, it is well-suited for various installation locations. The EVDC-90EU is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug&Charge standard.
- UL compliant 90kW DC fast electric vehicle charger with 300 – 1000V output
- Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
- Driver friendly with a 10 inch LCD touchscreen and simple to use interface
- Start modes include plug-n-play, RFID, OCPP, and optional POS
- Ethernet, 4G and Wi-Fi connections available
- IP54 rated enclosure, ideal for a wide range of locations and conditions
- 60Hz, 480VAC supply input
- Model Number: EVDC-90-EU
- Output Power: 90kW
- Output Voltage: 300 – 1000V
- Output Current: 125A (0 – 125A variable range)
- Supply Input: 400VAC (+/- 10%) three-phase / 50Hz
- Socket Type: Dual port CHAdeMO + CCS 2 or dual CCS 2
- Network Connections: LAN, 4G, Wi-Fi
- Communication: OCPP1.6
- Start Modes: Plug-n-play, RFID, OCPP and optional POS
- Display: 10 inch LCD touchscreen
Dimensions
- Width: 37.4″ / 950mm
- Depth: 19.3″ / 490mm
- Height: 65.0″ / 1650mm
EVDC - 120NA
EVDC Series
The 2nd generation EVDC-120NA is a 120kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level 3 charging stations and are currently the fastest charging option available for EVs. EVESCO's 120kW DC fast charging station is UL compliant and has dual ports for either CHAdeMO or NACS and CCS 1 charging cables or dual CCS 1 charging cables; each option can simultaneously split power to charge two electric vehicles. With its IP54-rated enclosure, it is well-suited for various installation locations. The EVDC-120NA is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug&Charge standard.
- UL compliant 120kW DC fast electric vehicle charger with 300 – 1000V output
- Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
- Driver friendly with a 10 inch LCD touchscreen and simple to use interface
- Start modes include plug-n-play, RFID, OCPP, and optional POS
- Ethernet, 4G and Wi-Fi connections available
- IP54 rated enclosure, ideal for a wide range of locations and conditions
- 60Hz, 480VAC supply input (three-phase)
- Model Number: EVDC-120NA
- Output Power: 120kW (can split power to charge two EVs simultaneously)
- Output Voltage: 300 – 1000V
- Output Current: 300A (0 – 300A variable range)
- Input Current: 147A (480VAC)
- Supply Input: 480VAC (+/- 10%) three-phase / 60Hz
- Socket Type: Dual port CHAdeMO or NACS + CCS 1 or dual CCS 1
- Network Connections: LAN, 4G, Wi-Fi
- Communication: OCPP1.6
- Start Modes: Plug-n-play, RFID, OCPP and optional POS
- Display: 10 inch LCD touchscreen
Dimensions
- Width: 37.4″ / 950mm
- Depth: 19.3″ / 490mm
- Height: 65.0″ / 1650mm
EVDC - 120EU
EVDC Series
The 2nd generation EVDC-120EU is a 120kW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level 3 charging stations and are currently the fastest charging option available for EVs. EVESCO's 120KW DC fast charging station is UL compliant and has dual ports for either CHAdeMO and CCS 2 charging cables or dual CCS 2 charging cables; both options can split power to charge two electric vehicles simultaneously. With its IP54-rated enclosure, it is well-suited for various installation locations. The EVDC-120EU is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug&Charge standard.
- UL compliant 120kW DC fast electric vehicle charger with 300 – 1000V output
- Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
- Driver friendly with a 10 inch LCD touchscreen and simple to use interface
- Start modes include plug-n-play, RFID, OCPP, and optional POS
- Ethernet, 4G and Wi-Fi connections available
- IP54 rated enclosure, ideal for a wide range of locations and conditions
- 50Hz, 400VAC (+/- 10%) supply input (three-phase)
- Model Number: EVDC-120EU
- Output Power: 120kW (can split power to charge two EVs simultaneously)
- Output Voltage: 300 – 1000V
- Output Current: 300A (0 – 300A variable range)
- Supply Input: 400VAC (+/- 10%) three-phase / 50Hz
- Input Current: 177A (400VAC)
- Socket Type: Dual port CHAdeMO + CCS 2 or dual CCS 2
- Network Connections: LAN, 4G, Wi-Fi
- Communication: OCPP1.6
- Start Modes: Plug-n-play, RFID, OCPP and optional POS
- Display: 10 inch LCD touchscreen
Dimensions
- Width: 37.4″ / 950mm
- Depth: 19.3″ / 490mm
- Height: 65.0″ / 1650mm

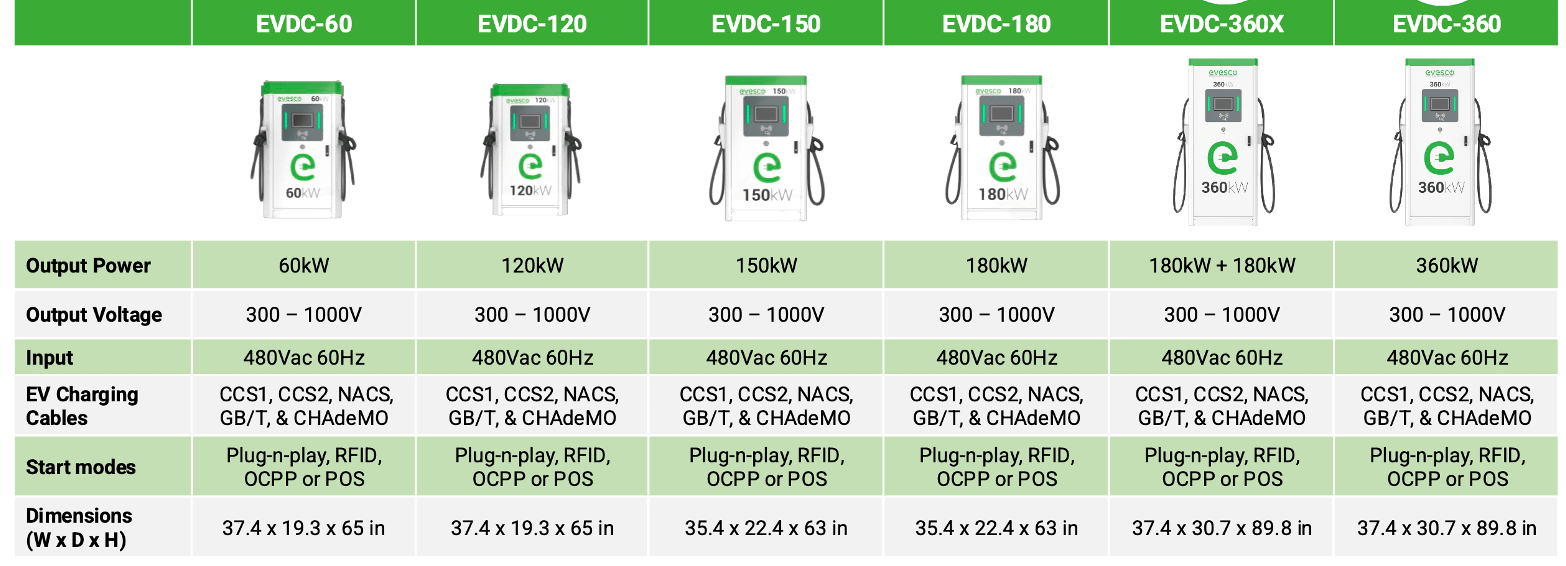

EVDC Series
Models Detail
You need a price? A quote? Or have a questions? Click Here
EVDC - 150NA
EVDC Series
The 2nd generation EVDC-150NA is a 150kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level three charging stations and are currently the fastest charging option available for EVs. EVESCO's 150kW DC fast charging station has dual ports for either CHAdeMO or NACS and CCS 1 charging cables or dual CCS 1 charging cables; each option can split power to charge two electric vehicles simultaneously, with the EVDC-150NA the power split is 90kW and 60kW. With its IP54-rated enclosure, it is well-suited for various installation locations. The EVDC-150NA is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug & Charge standard.
- 150KW DC fast electric vehicle charger with 300 – 1000V output
- Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
- Driver friendly with a 10 inch LCD touchscreen and simple to use interface
- Start modes include plug-n-play, RFID, OCPP, and optional POS
- Ethernet, 4G and Wi-Fi connections available
- IP54 rated enclosure, ideal for a wide range of locations and conditions
- 60Hz, 480VAC supply input (three-phase)
- Model Number: EVDC-150NA
- Output Power: 150kW (can split power 90kW / 60kW to charge two EVs simultaneously)
- Output Voltage: 300 – 1000V
- Output Current: 300A (0 – 300A variable range)
- Supply Input: 480VAC three-phase / 60Hz
- Input Current: 184A (480VAC)
- Socket Type: Dual port CHAdeMO or NACS + CCS 1 or dual CCS 1
- Network Connections: LAN, 4G, Wi-Fi
- Communication: OCPP1.6
- Start Modes: Plug-n-play, RFID, OCPP and optional POS
- Display: 10 inch LCD touchscreen
Dimensions
- Width: 4″ / 900mm
- Depth: 4″ / 570mm
- Height: 63.0″ / 1600mm
EVDC - 150EU
EVDC Series
The 2nd generation EVDC-150EU is a 150kW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level three charging stations and are currently the fastest charging option available for EVs. EVESCO's 150KW DC fast charging station has dual ports for either CHAdeMO and CCS 2 charging cables or dual CCS 2 charging cables; both options can split power to charge two electric vehicles simultaneously, with the EVDC-150EU the power split is 90kW and 60kW. With its IP54-rated enclosure, it is well-suited for various installation locations. The EVDC-150EU is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug&Charge standard.
- 150kW DC fast electric vehicle charger with 300 – 1000V output
- Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant.
- Driver friendly with a 10 inch LCD touchscreen and simple to use interface
- Start modes include plug-n-play, RFID, OCPP, and optional POS
- Ethernet, 4G and Wi-Fi connections available
- IP54 rated enclosure, ideal for a wide range of locations and conditions 50Hz, 400VAC (+/- 10%) supply input (three-phase)
- Model Number: EVDC-150EU
- Output Power: 150kW (can split power 90kW / 60kW to charge two EVs simultaneously)
- Output Voltage: 300 – 1000V
- Output Current: 300A (0 – 300A variable range)
- Supply Input: 400VAC (+/- 10%) three-phase / 50Hz
- Input Current: 221A (400VAC)
- Socket Type: Dual port CHAdeMO + CCS 2 or dual CCS 2
- Network Connections: LAN, 4G, Wi-Fi
- Communication: OCPP1.6
- Start Modes: Plug-n-play, RFID, OCPP and optional POS
- Display: 10 inch LCD touchscreen
Dimensions
- Width: 4″ / 900mm
- Depth: 4″ / 570mm
- Height: 0″ / 1600mm
EVDC - 180NA
EVDC Series
The EVDC-180NA is a 180kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level three charging stations and are currently the fastest charging option available for EVs. EVESCO's 180kW DC fast charging station has dual ports for either CHAdeMO or NACS and CCS 1 charging cables or dual CCS 1 charging cables; each option can split power to charge two electric vehicles simultaneously. With its IP54-rated enclosure, it is well-suited for various installation locations. The EVDC-180NA is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug & Charge standard.
- 180kW DC ultra-fast electric vehicle charger with 300 – 1000V output
- Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
- Driver friendly with a 10 inch LCD touchscreen and simple to use interface
- Start modes include plug-n-play, RFID, OCPP, and optional POS
- Ethernet, 4G and Wi-Fi connections available
- IP54 rated enclosure, ideal for a wide range of locations and conditions
- 60Hz, 480VAC supply input (three-phase)
- Model Number: EVDC-180NA
- Output Power: 180kW
- Output Voltage: 300 – 1000V
- Output Current: 300A (0 – 300A variable range)
- Supply Input: 480VAC three-phase / 60Hz
- Input Current: 221A (480VAC)
- Socket Type: Dual port CHAdeMO or NACS + CCS 1 or dual CCS 1
- Network Connections: LAN, 4G, Wi-Fi
- Communication: OCPP1.6
- Start Modes: Plug-n-play, RFID, OCPP and optional POS
- Display: 10 inch LCD touchscreen
Dimensions
- Width: 4″ / 900mm
- Depth: 4″ / 570mm
- Height: 0″ / 1600mm
EVDC Series
Models Detail
You need a price? A quote? Or have a questions? Click Here
EVDC - 180EU
EVDC Series
The EVDC-180EU is a 180kW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level three charging stations and are currently the fastest charging option available for EVs. EVESCO's 180kW DC fast charging station has dual ports for either CHAdeMO and CCS21 charging cables or dual CCS 2 charging cables; both options can split power to charge two electric vehicles simultaneously. With its IP54-rated enclosure, it is well-suited for various installation locations. The EVDC-180EU is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug&Charge standard.
- 180kW DC ultra-fast electric vehicle charger with 300 – 1000V output
- @ Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
- Driver friendly with a 10 inch LCD touchscreen and simple to use interface
- Start modes include plug-n-play, RFID, OCPP, and optional POS
- Ethernet, 4G and Wi-Fi connections available
- IP54 rated enclosure, ideal for a wide range of locations and conditions
- 50Hz, 400VAC (+/- 10%) supply input (three-phase)
- Model Number: EVDC-180EU
- Output Power: 180kW
- Output Voltage: 300 – 1000V
- Output Current: 300A (0 – 300A variable range)
- Supply Input: 400VAC (+/- 10%) three-phase / 50Hz
- Input Current: 265A (400VAC)
- Socket Type: Dual port CHAdeMO + CCS 2 or dual CCS 2
- Network Connections: LAN, 4G, Wi-Fi
- Communication: OCPP1.6
- Start Modes: Plug-n-play, RFID, OCPP and optional POS
- Display: 10 inch LCD touchscreen
Dimensions
- Width: 4″ / 900mm
- Depth: 4″ / 570mm
- Height: 0″ / 1600mm
EVDC - 180EU
EVDC Series
The EVDC-180EU is a 180kW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level three charging stations and are currently the fastest charging option available for EVs. EVESCO's 180kW DC fast charging station has dual ports for either CHAdeMO and CCS21 charging cables or dual CCS 2 charging cables; both options can split power to charge two electric vehicles simultaneously. With its IP54-rated enclosure, it is well-suited for various installation locations. The EVDC-180EU is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug&Charge standard.
- 180kW DC ultra-fast electric vehicle charger with 300 – 1000V output
- @ Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
- Driver friendly with a 10 inch LCD touchscreen and simple to use interface
- Start modes include plug-n-play, RFID, OCPP, and optional POS
- Ethernet, 4G and Wi-Fi connections available
- IP54 rated enclosure, ideal for a wide range of locations and conditions
- 50Hz, 400VAC (+/- 10%) supply input (three-phase)
- Model Number: EVDC-180EU
- Output Power: 180kW
- Output Voltage: 300 – 1000V
- Output Current: 300A (0 – 300A variable range)
- Supply Input: 400VAC (+/- 10%) three-phase / 50Hz
- Input Current: 265A (400VAC)
- Socket Type: Dual port CHAdeMO + CCS 2 or dual CCS 2
- Network Connections: LAN, 4G, Wi-Fi
- Communication: OCPP1.6
- Start Modes: Plug-n-play, RFID, OCPP and optional POS
- Display: 10 inch LCD touchscreen
Dimensions
- Width: 4″ / 900mm
- Depth: 4″ / 570mm
- Height: 0″ / 1600mm
EVDC - 360NA
EVDC Series
The EVDC-360NA is a 360kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level three chargers and are currently the fastest charging option available for EVs. EVESCO's 360kW DC fast charging station is one of the fastest chargers on the market and is ideal for charging large electric vehicles. It has dual ports for either CHAdeMO or NACS and CCS 1 charging cables or dual CCS 1 charging cables; each option is liquid-cooled and can split power to charge two electric vehicles simultaneously. With its IP54-rated enclosure, it is well-suited for various installation locations. The EVDC-360NA is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug&Charge standard.
- 360kW DC ultra-fast electric vehicle charger with 300 – 1000V output
- Utilizing the latest in DC ultra-fast charging and liquid cooling technology
- Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
- Start modes include plug-n-play, RFID, OCPP, and optional POS
- Ethernet, 4G and Wi-Fi connections available IP54 rated enclosure, ideal for a wide range of locations and conditions
- 60Hz, 480VAC supply input (three-phase)
- Model Number: EVDC-360NA
- Output Power: 360kW
- Output Voltage: 300 – 1000V
- Output Current: 400A (0 – 400A variable range)
- Supply Input: 480VAC three-phase / 60Hz
- Input Current: 442A (480VAC)
- Socket Type: Dual port CHAdeMO or NACS + CCS 1 or dual CCS 1
- Network Connections: LAN, 4G, Wi-Fi
- Communication: OCPP1.6
- Start Modes: Plug-n-play, RFID, OCPP and optional POS
- Display: 10 inch LCD touchscreen
Dimensions
- Width: 4” / 950mm
- Depth: 7″ / 780mm
- Height: 8″ / 2280mm
EVDC Series
Models Detail
You need a price? A quote? Or have a questions? Click Here
EVDC - 360EU
EVDC Series
The EVDC-360EU is a 360kW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level three chargers and are currently the fastest charging option available for EVs. EVESCO's 360KW DC fast charging station is one of the fastest chargers on the market and is ideal for charging large electric vehicles. It has dual ports for either CHAdeMO and CCS 2 charging cables or dual CCS 2 charging cables; both options are liquid-cooled and can split power to charge two electric vehicles simultaneously. With its IP54-rated enclosure, it is well-suited for various installation locations. The EVDC-360EU is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug&Charge standard.
- 360kW DC ultra-fast electric vehicle charger with 300 – 1000V output
- Utilizing the latest in DC ultra-fast charging and liquid cooling technology
- Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
- Start modes include plug-n-play, RFID, OCPP, and optional POS
- Ethernet, 4G and Wi-Fi connections available
- IP54 rated enclosure, ideal for a wide range of locations and conditions
- 50Hz, 400VAC (+/- 10%) supply input (three-phase)
- Model Number: EVDC-360EU
- Output Power: 360kW
- Output Voltage: 300 – 1000V
- Output Current: 400A (0 – 400A variable range)
- Supply Input: 400VAC (+/- 10%) three-phase / 50Hz
- Input Current: 530A (400VAC)
- Socket Type: Dual port CHAdeMO + CCS 2 or dual CCS 2
- Network Connections: LAN, 4G, Wi-Fi
- Communication: OCPP1.6
- Start Modes: Plug-n-play, RFID, OCPP and optional POS
- Display: 10 inch LCD touchscreen
Dimensions
- Width: 4″ / 950mm
- Depth: 7″ / 780mm
- Height: 8″ / 2280mm
EVDC - 360x NA
EVDC Series
The EVDC-360X NA is a twin 180kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level three chargers and are currently the fastest charging option available for EVs. EVESCO's twin 180kW DC fast charging station is two high-powered EV chargers in one with two 180 kW CCS 1 charging cables, both capable of delivering up to 180 kW output power, whether one or two electric vehicles are charging. With its IP54-rated enclosure, it is well-suited for various installation locations. The EVDC-360X NA is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug&Charge standard.
- Twin 180kW DC ultra-fast electric vehicle charger with 300 – 1000V output
- True simultaneous charging – charge two cars at the same time with twin 180 kW CCS1 charging cables
- Smaller footprint and costs less than two separate 180 kW charging stations
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
- Start modes include plug-n-play, RFID, OCPP, and optional POS
- Ethernet, 4G and Wi-Fi connections available
- IP54 rated enclosure, ideal for a wide range of locations and conditions 60Hz, 480VAC supply input (three-phase)
- Model Number: EVDC-360X NA
- Output Power: 180kW + 180kW
- Output Voltage: 300 – 1000V
- Output Current: 300A (0 – 300A variable range)
- Supply Input: 480VAC three-phase / 60Hz
- Input Current: 442A (480VAC)
- Socket Type: CCS 1 or dual CCS 1
- Network Connections: LAN, 4G, Wi-Fi
- Communication: OCPP1.6
- Start Modes: Plug-n-play, RFID, OCPP and optional POS
- Display: 10 inch LCD touchscreen
Dimensions
- Width: 4” / 950mm
- Depth: 7″ / 780mm
- Height: 8″ / 2280mm
EVDC - 360x EU
EVDC Series
The EVDC-360X EU is a twin 180kW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level three chargers and are currently the fastest charging option available for EVs. EVESCO's twin 180kW DC fast charging station is two high-powered EV chargers in one with two 180 kW CCS 2 charging cables, both capable of delivering up to 180 kW output power, whether one or two electric vehicles are charging. With its IP54-rated enclosure, it is well-suite various installation locations. The EVDC-360X EU is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug & Charge standard.
- Twin 180kW DC ultra-fast electric vehicle charger with 300 – 1000V output
- True simultaneous charging – charge two cars at the same time with twin 180 kW CCS2
- charging cables
- Smaller footprint and costs less than two separate 180 kW charging stations
- Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
- Start modes include plug-n-play, RFID, OCPP, and optional POS
- Ethernet, 4G and Wi-Fi connections available
- IP54 rated enclosure, ideal for a wide range of locations and conditions
- 50Hz, 400VAC (+/- 10%) supply input (three-phase)
- Model Number: EVDC-360X EU
- Output Power: 180kW + 180kW
- Output Voltage: 300 – 1000V
- Output Current: 300A (0 – 300A variable range)
- Supply Input: 400VAC (+/- 10%) three-phase / 60Hz
- Input Current: 530A (400VAC)
- Socket Type: CCS 2 + CCS 2
- Network Connections: LAN, 4G, Wi-Fi
- Communication: OCPP1.6
- Start Modes: Plug-n-play, RFID, OCPP and optional POS
- Display: 10 inch LCD touchscreen
Dimensions
- Width: 4” / 950mm
- Depth: 7″ / 780mm
- Height: 8″ / 2280mm
You need a price? A quote? Or have a questions? Click Here
